Product details

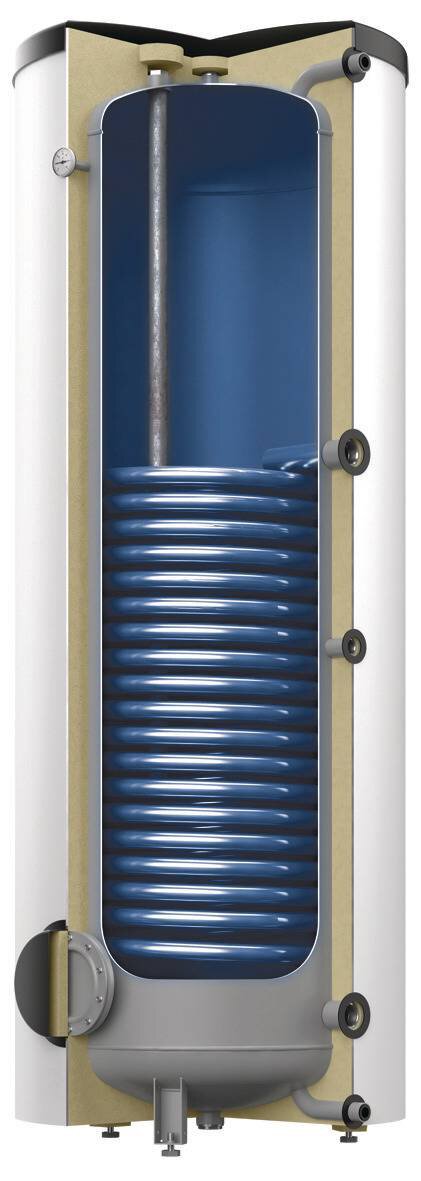

Hot water storage tanks for indirect drinking-water heating, particularly for heat pump applications, in a vertical version and optionally with one or two internal heat exchangers.Storage tank of steel S235JR+AR, designed according to DIN EN 12897 and the Pressure Equipment Directive 2014/68/EU. Enamelling for hygienic perfect drinking water is performed according to DIN 4753 T3.DHW tank up to 500 litre insulated with non-removable highly efficient insulation system according to DIN 4102-1 material class B2; DHW tank > 500 to 1000 litre insulated with 100mm; DHW tank > 1000 litre with 120mm removable fleece insulation, according to DIN 4102-1 material class B2.Drinking water tank up to 500 litres available in energy efficiency classes B and C. DHW tank > 500 litres only available in energy efficiency class C.The heat losses are measured on an externally certified test bed.
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
9126474 - EEHR 2.00
Electric flange-mounted immersion heater from for electric booster heating of Storatherm heating water buffer cylinders and calorifiers with corresponding screw-in socket or installation option via the inspection opening. Temperature controller up to 95°C target value setting and integrated terminal box. Installation and electrical connection performed on site. Water hardness max. 14°dH, not approved for continuous operation.

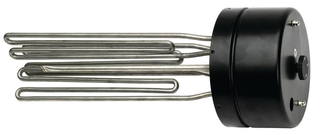

9118710 - EFHR 2.5
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
9116314 - EFHR 4.0
Electric immersion heater from for electric booster heating of Storatherm Heat H.../R and HF.../R heating water buffer cylinders and Storatherm Aqua hot water storage tanks-calorifiers with corresponding installation option via the inspection opening.
Temperature controller up to 85°C target value setting, safety temperature limiter at 110°C. Integrated terminal box. 3 power levels, reversible connections. Including flange and seal. Installation and electrical connection performed on site. Water hardness max. 14°dH, approved for continuous operation.
From 25 kW, the use of a control line is mandatory!
