Product details

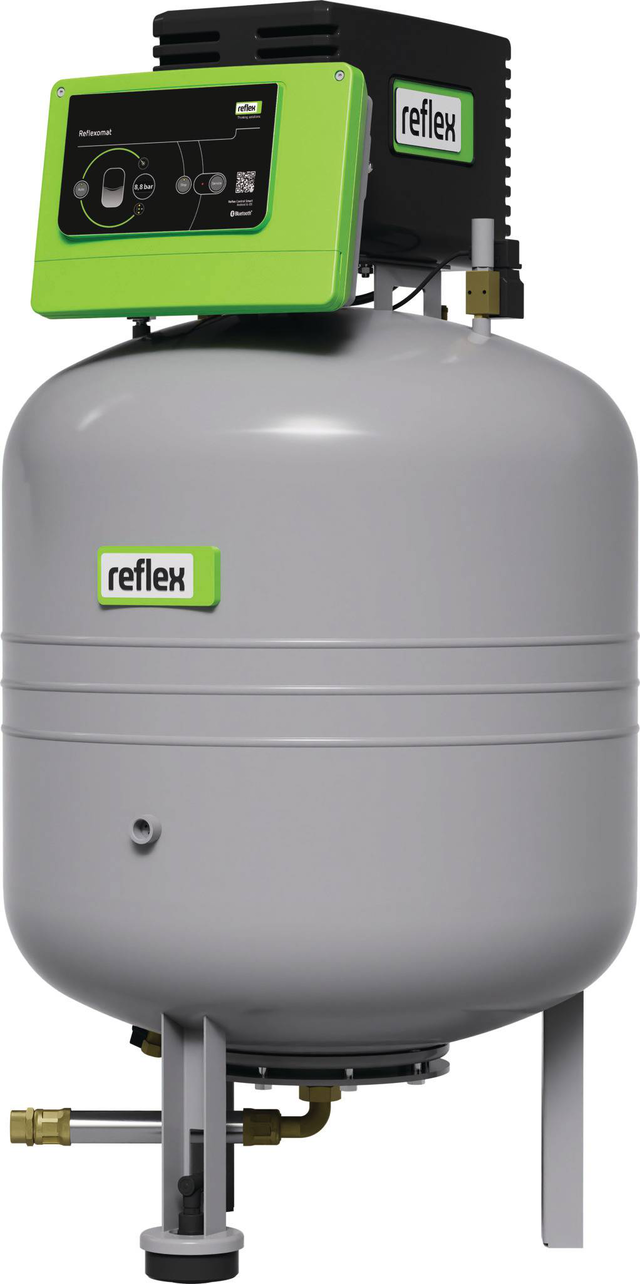

Reflexomat
Pneumatic and control module for compressor-controlled Reflexomat pressurisation station for pressurisation and for make-up water control in sealed heating and chilled water systems.Constructed in compliance with DIN EN 12828 and the requirements of VDI 4708, with CE marking.Suitable for use in noise-sensitive areas.
The function unit comprises a floor-standing expansion vessel, constructed in accordance with DIN EN 13831 and directive EU 2014/68/EU (EU-PED) with CE Marking, plus an attached control unit comprising a pneumatic system and a vertical, app-operated Control Smart control and operating unit. In the pneumatic part, pressure maintenance is implemented using a compressed air compressor in conjunction with a compressed air solenoid valve as an overflow device.
Expansion vessel:
In the pneumatic section, pressure maintenance is achieved by means of a compressed air compressor in conjunction with a pneumatic solenoid valve acting as an overflow device. The system pressure is measured by an electronic sensor. Pneumatic section comprising:
Functioning of the pressurisation in the limits +/- 0.1 bar including compressor monitoring. Controlled make-up, automatic interruption and fault message upon exceeding of the runtime and/or the number of cycles. Evaluation option provided by a contact water meter including optional possible capacity monitoring of ion exchangers in the make-up pipe. Documentation and control of the entire system in respect of the above mentioned parameters.
Pneumatic and control module for compressor-controlled Reflexomat pressurisation station for pressurisation and for make-up water control in sealed heating and chilled water systems.Constructed in compliance with DIN EN 12828 and the requirements of VDI 4708, with CE marking.Suitable for use in noise-sensitive areas.
The function unit comprises a floor-standing expansion vessel, constructed in accordance with DIN EN 13831 and directive EU 2014/68/EU (EU-PED) with CE Marking, plus an attached control unit comprising a pneumatic system and a vertical, app-operated Control Smart control and operating unit. In the pneumatic part, pressure maintenance is implemented using a compressed air compressor in conjunction with a compressed air solenoid valve as an overflow device.
Expansion vessel:
- Floor-standing design with feet including transducer for vessel content measurement
- System connection with integrated compensator
- Butyl bladder
- Air-side inner chamber
- Fully plastic-coated exterior
In the pneumatic section, pressure maintenance is achieved by means of a compressed air compressor in conjunction with a pneumatic solenoid valve acting as an overflow device. The system pressure is measured by an electronic sensor. Pneumatic section comprising:
- compressed air compressor
- component-tested pneumatic solenoid valve
- component-tested safety valve for pressure relief of the membrane expansion vessel
- electronic pressure sensor
- appropriate connecting pipes
- RS485 interface (galvanically isolated) for the connection of optional communication components
- Including Modbus RTU protocol
- Floating output for forwarding of the group message
- Digital input for signal processing of a contact water meter
- 230V output for connection of level-dependent make-up/degassing stations
- Input for make-up functional request via external signal
- Intuitive and self-explanatory menu and operating guidance
- Automatic setting of the time and date
- Setting and adjustment of the minimum operating pressure p0
- Status, warning and error displays for system pressure and operating status, including diagnostic information and recommended actions
- Quick and easy commissioning (commissioning wizard)
- Customisable parameterisation
- Maintenance and troubleshooting wizard
- Automatic software updates for the system control unit
Functioning of the pressurisation in the limits +/- 0.1 bar including compressor monitoring. Controlled make-up, automatic interruption and fault message upon exceeding of the runtime and/or the number of cycles. Evaluation option provided by a contact water meter including optional possible capacity monitoring of ion exchangers in the make-up pipe. Documentation and control of the entire system in respect of the above mentioned parameters.
Downloads
Documents
Drawings
BIM data
Product photos
Accessories
recommended
7945725 - Commissioning Cat. 3
Service description:
commissioning category 3 for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow mains water station by Customer Service comprising:
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
Programming of the expansion and bus modules does not form part of commissioning. Programming is billed separately based on time and expenditure.
commissioning category 3 for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow mains water station by Customer Service comprising:
- Travel to and from site,
- Setting of the system to the operating parameters specified by the customer,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- Fillsoft and Fillset are also checked
- All set values are documented in a log.
- electrical and hydraulic connection of the control unit, the accessory components and filled supply system.
- The expansion vessels of the pressurisation station must not be filled with water.
- A sufficient supply of filling water must be provided.
While it is entirely possible for customers to put a recently purchased system into service themselves, there are a number of reasons why commissioning by Reflex is a better idea.
- Certainty that the system is set up for optimum operation
- Excluding of possible damage due to incorrect commissioning thus reliability and avoidance of time and costs for downtimes
the service can take place within the local country inside about three weeks, internationally within about six weeks after placing of the corresponding order.
Services provided by Service are net! The price does not include any site waiting times or work arising from improper installation or improper condition.
Programming of the expansion and bus modules does not form part of commissioning. Programming is billed separately based on time and expenditure.
optional
7613100 - Cap valve SU G1" × 1"
Cap valve
For diaphragm expansion vessels in sealed heating and cooling systems.With a safe shut-off to prevent inadvertent closing and a discharge according to DIN EN 12828.
For diaphragm expansion vessels in sealed heating and cooling systems.With a safe shut-off to prevent inadvertent closing and a discharge according to DIN EN 12828.
optional
9119352 - motorized ball valve Safecontrol
Safecontrol
Motor ball valve as conversion kit for water make-up in conjunction with Servitec and Variomat.Actuation takes place directly from the control unit. The dirt-resistant motor ball valve is spring-closed without any need for an electrical supply.Hydraulic and electrical connections must be made on-site.
Motor ball valve as conversion kit for water make-up in conjunction with Servitec and Variomat.Actuation takes place directly from the control unit. The dirt-resistant motor ball valve is spring-closed without any need for an electrical supply.Hydraulic and electrical connections must be made on-site.
optional
7945726 - Commissioning add. Cat. 3
Service description:
commissioning of an additional system, category 3, for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow by the customer service, comprising:
commissioning of an additional system, category 3, for a standard system in the product ranges Reflexomat Compact RSC / Servitec S / Reflex Hydroflow by the customer service, comprising:
- Adjustment of system to the operating parameters specified by the client,
- Checking the settings and operating parameters, and the system's performance and function in the overall system,
- Fillsoft and Fillset are checked too
- All set values documented in a report.
- electrical and hydraulic connection of the control unit, the accessory components and filled supply system.
- The expansion vessels of the pressurisation station must not be filled with water.
- A sufficient supply of filling water must be provided.
optional
7857700 - diaphragm rupture detector MBM II
Membrane rupture detector
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Electrode with evaluation relay for installation in an expansion vessel with an appropriate connection. Vessel must be pre-equipped for electrode (please note when ordering)
Inclusive of electrode relay for signal measurement for installation in installer-supplied control cabinet or for local installation.
- power supply 230 V/50 Hz
- floating output (changeover contact)
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
