Product details

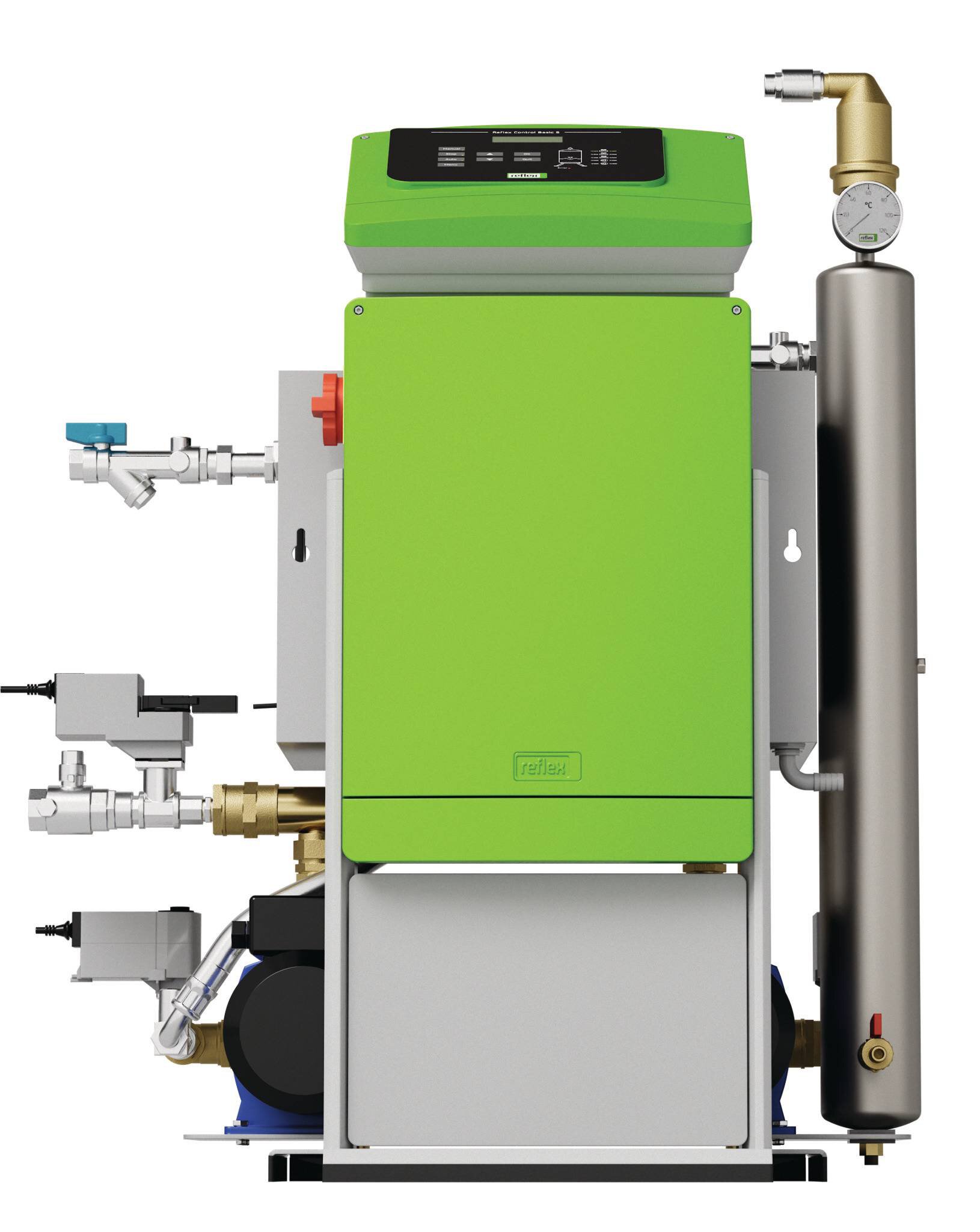

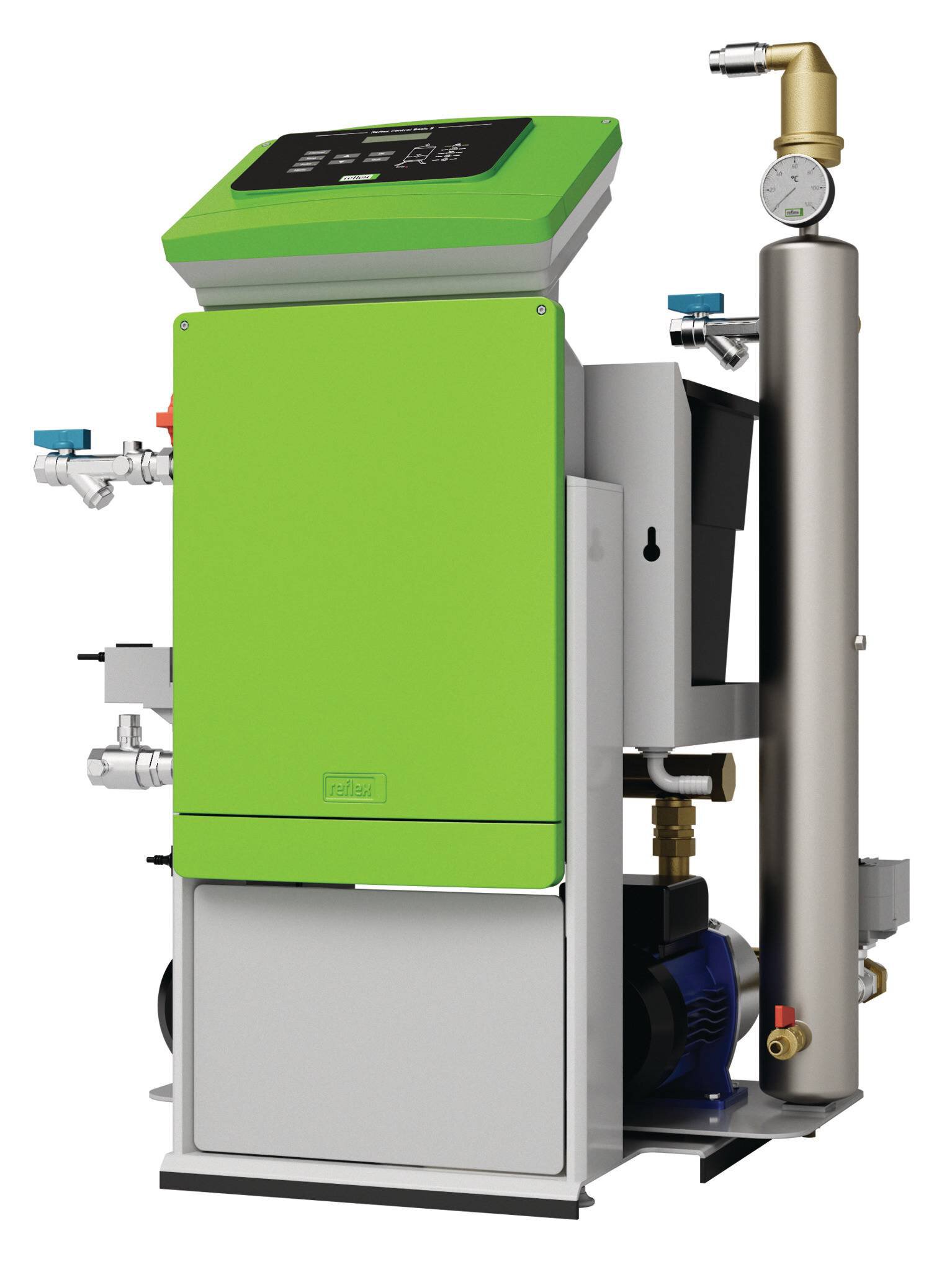

Fillcontrol Auto Max 2/50
Make-up system with 2 pumps consisting of degassing module for degassing the water, 18 litre break tank as a system separator for connection to drinking water networks and control unit for controlling and regulating the entire unit. Pressure-controlled, controlled replenishment of make-up water and filling function for initial filling and refilling. Periodic degassing of the system water via the built-in vacuum spray tube. Built-in system separator enables direct connection to drinking water and fresh water networks. Fully assembled and wired.
Make-up system with 2 pumps consisting of degassing module for degassing the water, 18 litre break tank as a system separator for connection to drinking water networks and control unit for controlling and regulating the entire unit. Pressure-controlled, controlled replenishment of make-up water and filling function for initial filling and refilling. Periodic degassing of the system water via the built-in vacuum spray tube. Built-in system separator enables direct connection to drinking water and fresh water networks. Fully assembled and wired.
Downloads
Documents
Drawings
BIM data
Product photos
Contact the Reflex Team and further information
Reflex Solutions Pro
- Free to use
- Simple and self-explanatory
- Detailed documentation
:focal(1994x788:1995x789))
Reflex Solutions Pro allows you to design every Reflex and Sinus product into your project quickly and easily. After entering a few system parameters you will receive your custom product solution with all the relevant documentation.
